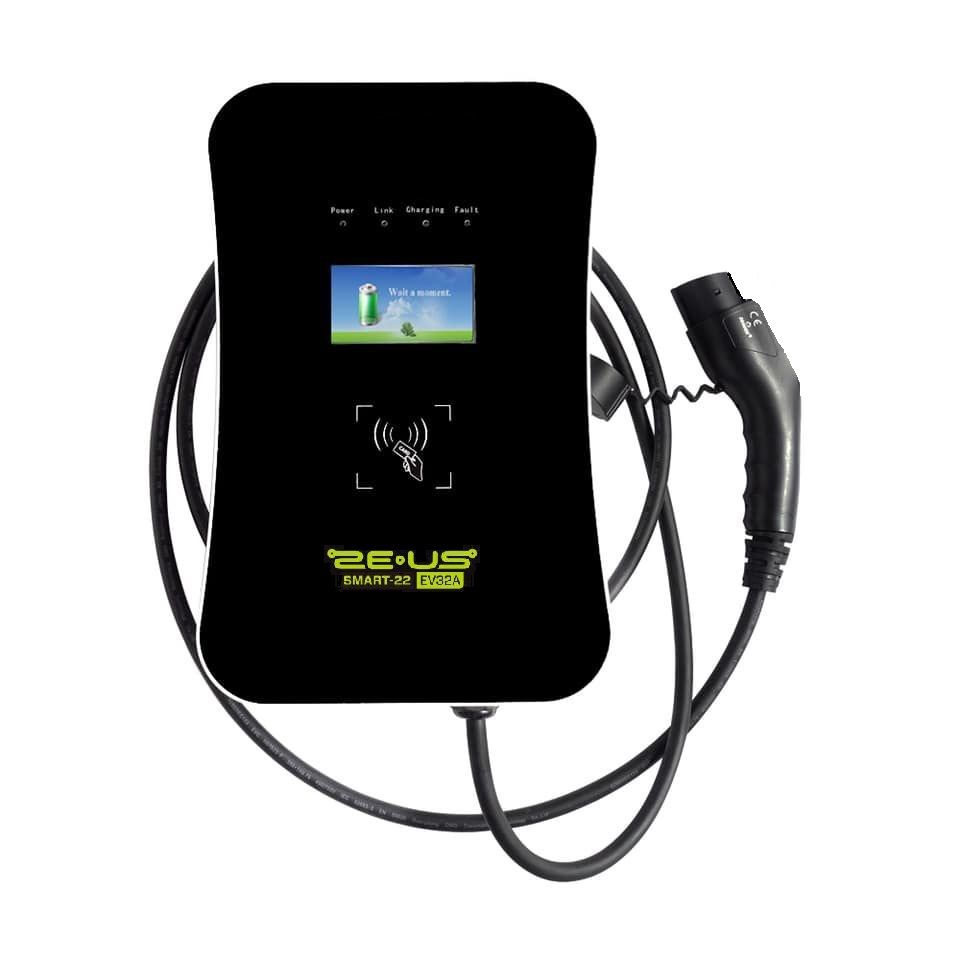

ZEUS SMART 3x32A 22KW/5m/RFID/WI-FI/APP/Type B RCD/ EV Charger

Product Compare

Product number: M3W332APP5M

Measure: pcs

Weight: 10 kg
Stock:2 db raktáron

Quality and durable and SMART charging device, not to be confused with its plastic counterparts.
Hálózatfigyelő külön megvásárolható - Power meter and load balancing for the item

286 000 Ft
Net: 225 197 Ft +vat

Add to favorites

Brief description: HUNGARIAN LANGUAGE LCD display,
WIFI/RFID and APPLICATION (english)
Quality and beautiful and demanding design Strong aluminum housing, black safety glass front.
Equipped with 5 meter Type2 cable
RCB: Type B-EV (30mA AC, 6mA DC)
Robust strong design, housing design IP65 protection level Internet control (on/off), Mobile app, user management and charging control, historical data
Shockproof and waterproof, Protection against overheating, Protection against short circuit, Protection against overvoltage, Protection against overload
Warranty: 3 years

Product details

<br>
General Information

Product name: 22kw ZEUS SMART wall charger

Standard: IEC Standard
Product quality certificate: CE, ROHS, REACH

Type: M3W332EN
Nominal AC input voltage: 380V ±10% 50/60 Hz
Rated power: 22kw/32amp
Adjustable charging current: 6a-32a
Connector type (car side): IEC 62196-2 (Type 2/Mennekes) connector with 5 meter cable
EVSE charging mode Mode 3 Charging
User interface and control
Control, charging start and stop 1. Automatic charging start and stop 2. RFID card start and stop 3. Application control (iPhone and Android)
LCD display: color 4.3-inch LCD display
LED display: 4 LED displays -Power/Connect/Charging/Fault
Communication Internet connection: Ethernet/LAN (RJ-45) and WIFI 2.4 Ghz
External communication: OCPP 1.6J / RS 485

Operating Range

Operating temperature from -30C to +55C external environment
Storage temperature from -40C to +75C external environment

IP protection IP54

Humidity 95% (non-condensing)
Protection: Type B RCD
Overvoltage protection Yes Low voltage protection Yes
Overload protection Yes Short circuit protection Yes
Leakage protection Yes Earthing protection Yes
Overheating protection Yes Overcurrent protection Yes

Product physical characteristics

Size (Height x Width x Depth mm): 410 x 260 x 164
Weight: 1-phase＜10kg; 3-phase＜12kg
Cable length: 5m or 7.5 meters according to option
Material: Front panel: tempered glass; Back panel: Metal
